Q12Y-6*3200 Hot Sell Cnc Shearing Machine Automatic Shearing Machine

Опис

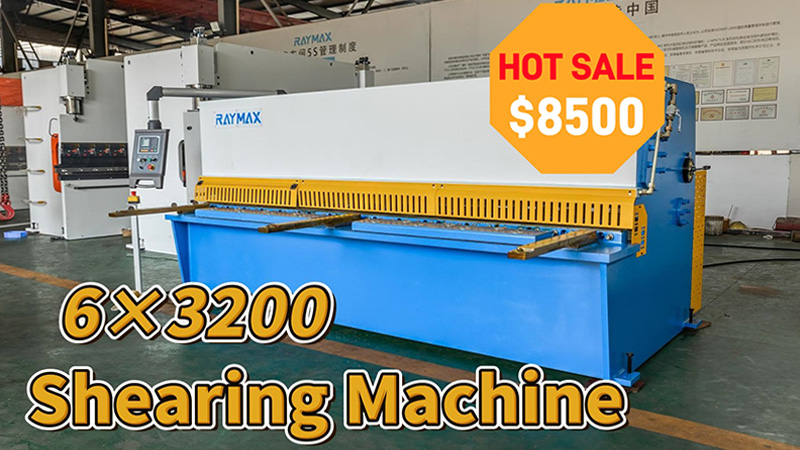

Introducing our 6*3200 Hydraulic Swing Beam Shearing Machine, now available for only $8,500!

Cnc shearing machine is built with a sturdy welded steel frame and vibration stress-relief processing, this machine offers exceptional stability and precision for high-intensity, long-duration work. The hydraulic drive system ensures smooth and efficient cutting, with an adjustable upper beam stroke for precise cuts based on material thickness.

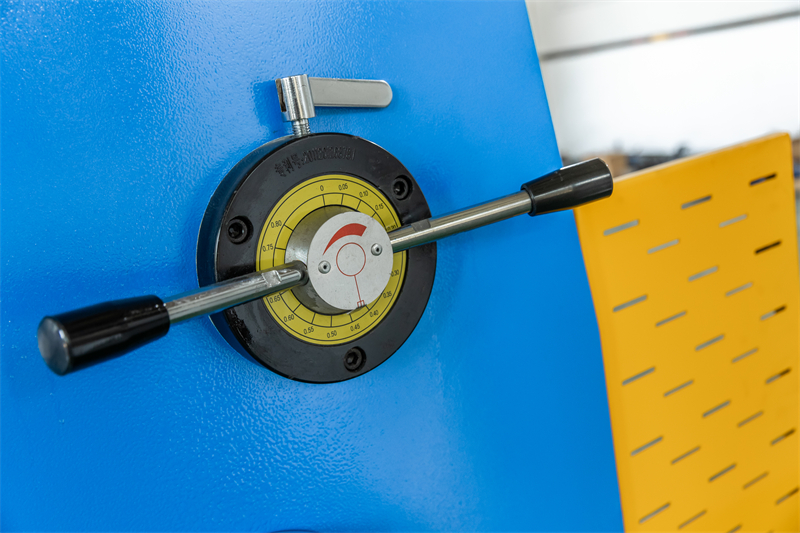

The shearing machine is equipped with a digital display for real-time monitoring of the back gauge position and cut count, the machine also features quick blade gap adjustments and a light alignment system for accurate cuts.

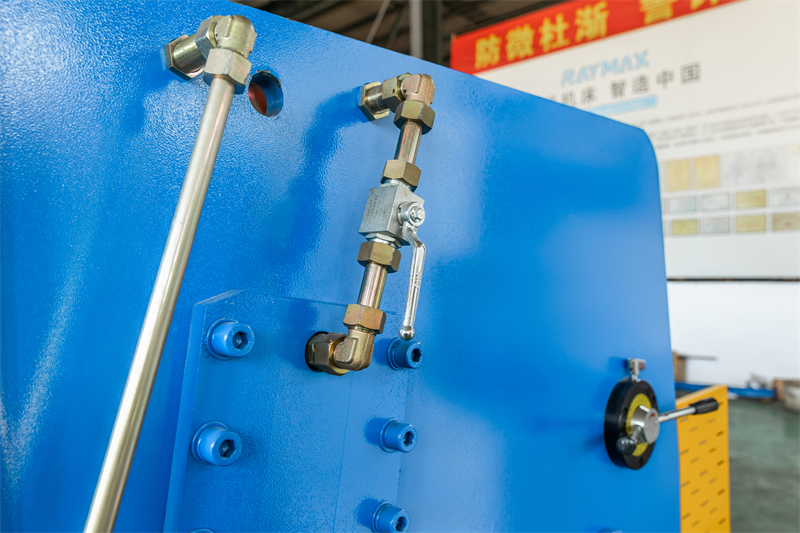

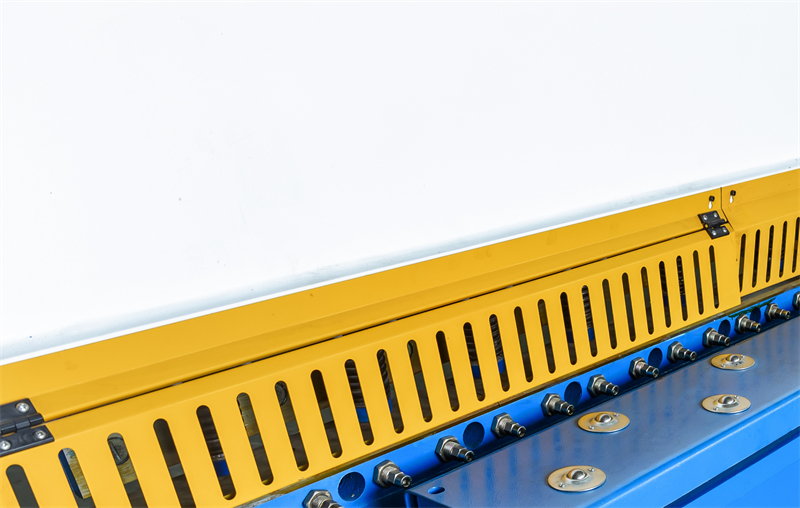

Safety features include protective grilles and an electrical interlock for operator safety, along with a front pressure gauge to monitor working pressure.

Simple to operate with an easy-to-use control panel, this shearing machine offers both efficiency and reliability at an unbeatable price!

Параметри

Модель	Cutting thickness (mm)	Cutting length (mm)	Cutting Angel (°)	Stopper Adjust Range (mm)	Stroke time (min-1)	Motor (KW)	Dimension(mm)	Weight (t)
QC12Y-4X2500	4	2500	1.5	500	18	7.5	2900x1500x1580	3.1
QC12Y-4X3200	4	3200	1.5	500	14	7.5	3580x1500x1580	5.2
QC12Y-4X4000	4	4000	1.5	500	12	7.5	4480x1500x1580	6.7
QC12Y-6X2500	6	2500	1.5	500	18	7.5	2990x1650x1620	4.6
QC12Y-6X3200	6	3200	1.5	500	14	7.5	3690x1650x1620	5.9
QC12Y-6X4000	6	4000	1.5	500	12	7.5	4480x1850x1700	7.7
QC12Y-6X6000	6	6000	1.5	500	12	11	6480x2000x2000	15.0
QC12Y-8X2500	8	2500	1.5	500	18	11	2990x1700x1700	5.0
QC12Y-8X3200	8	3200	1.5	500	14	11	3690x1700x1700	6.0

Стандартне обладнання

E21s NC control System

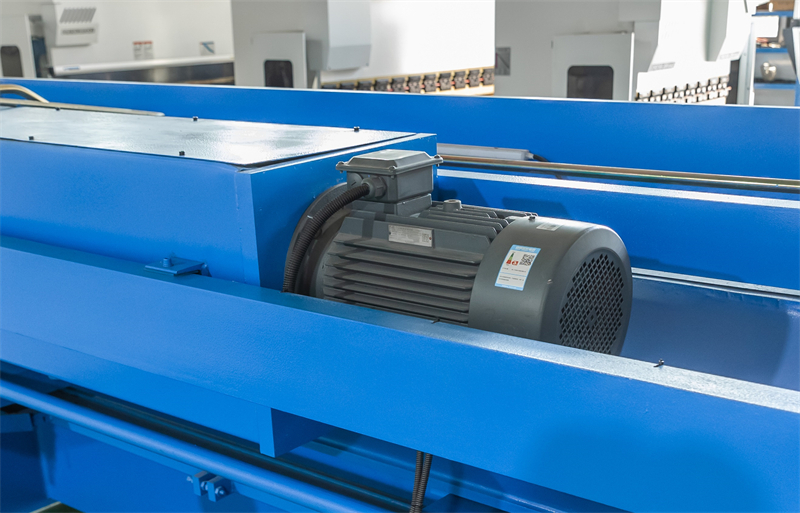

Main Motor Siemens Germany brand

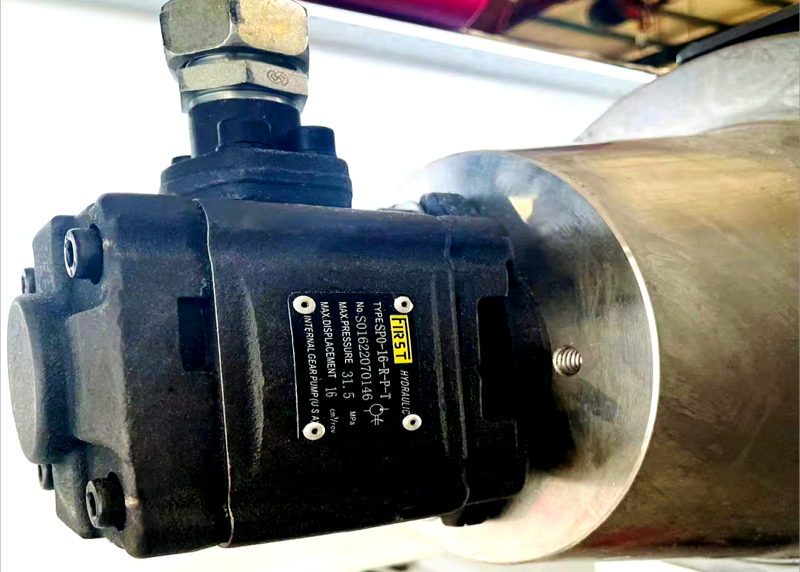

Pump First USA brand

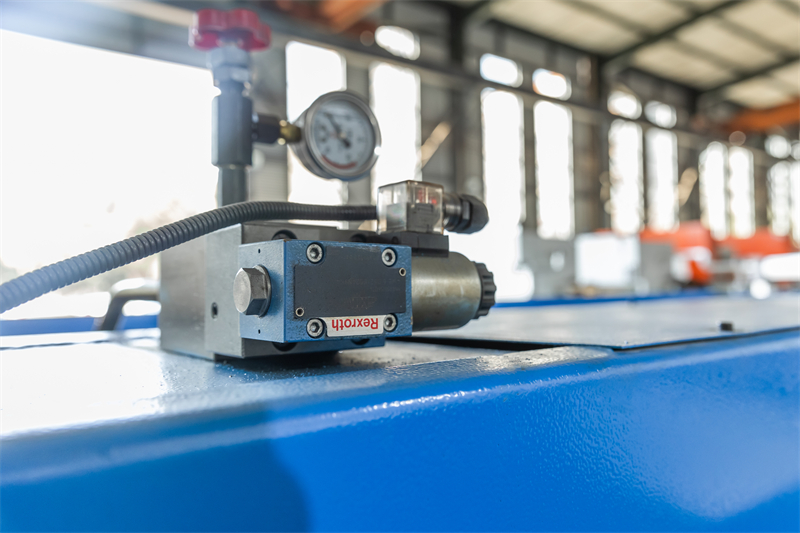

Hydraulic Valve BOSCH-REXROTH Germany brand

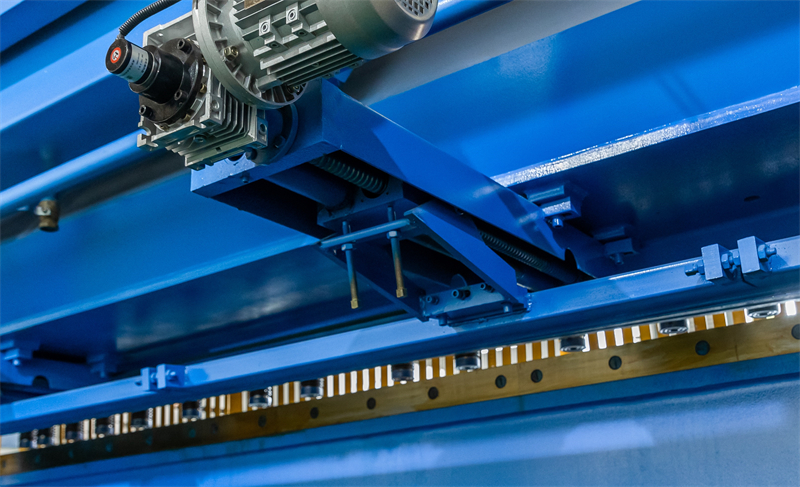

Ball Screw&Linear guide Hiwin Taiwan brand

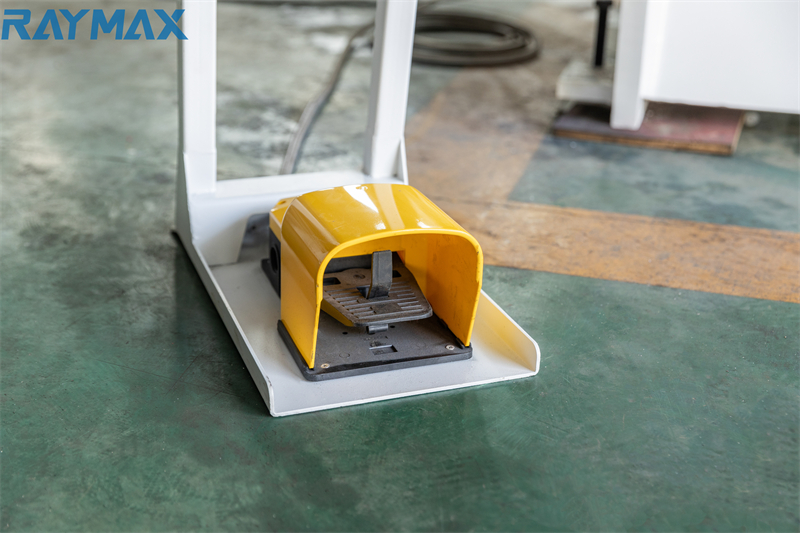

Foot pedal Pizzato Italy brand
Electrical Schneider France brand
Schneider PLC with Inverter

Система управління

ESTUN 21S
*Back gauge(X axis) movement control
*Control AC motor or inverter
*Intelligent and unilateral positioning
*Language for Chinese/English

*Регулювання кута різання

CT8
*7″ monochrome LCD Touch screen
*Numerical programming
*RF-link wireless radio frequency data communication allow backup and restoring operations
*Angle and back gauge correction.
